FPV Aircraft Sabre Basic Kits (1900MM/74.8")

  • NO.:FS 1504
  • Quantity: 4
  • Brand:Finwing
  • Market price:$129.98
    Price For You:$109.98
  • Color:
  • QTY: Unit(s)
  • Total:
Payment Option:

View History

Description

Attribute

Order note

Comment

FPV,UAV Aircraft Sabre  Basic Kits (PART NO:FS:1504)

Wing Span : 1900MM (74.8")

Length: 1320MM(52")

Flap: Options servo not included ( 2PCS 9g Servo)

Max.AUW: 4.5kg(10.0Pound)

Duration: 1.0-2.0 hours

Flight Range: >40.0km

Airframe Hardwares, Servo horn, Aileron,elevator,Rudder extension wires

11*5.5" Propeller(included as free)

Your May required the follow Power Parts:

Glue not included because of Airmail restrictions

1PCS Brushless Motor M2820(3542)

1PCS Premium Brushless 60A ESC OPTO

1PCS External UBEC 6A

3PCS Metal gear 23g servo

1PCS 9g servo



Designer's Voice

Some of your words in my mind when Choose an airfoil and its aerodynamic performance:

Battle up headwinds or cutting the wind like knife,  good slow flying and comparatively fast flying performance as well, long range and long time flying.mild tip stall ,wind penetration etc..Which words is yours?

As you said: nothing is perfect but the perfect compromise !

In consideration of wind turbulence, primary pilots, efficiency lost by traditional pusher aircrafts.The raised fuselage bay , CG.raised accordingly and high-wing combined with a little dihedral angle is good to self correcting. Finally come out good roll stability,  pitch stability and more efficient thrust.

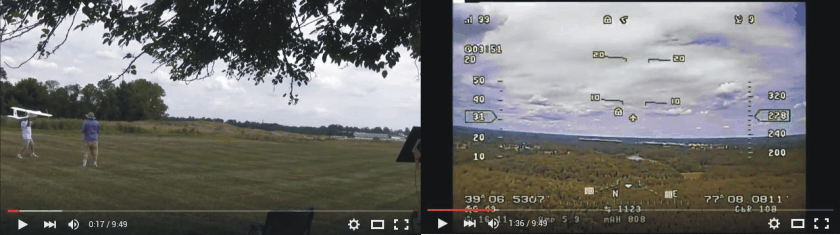

Watch Video

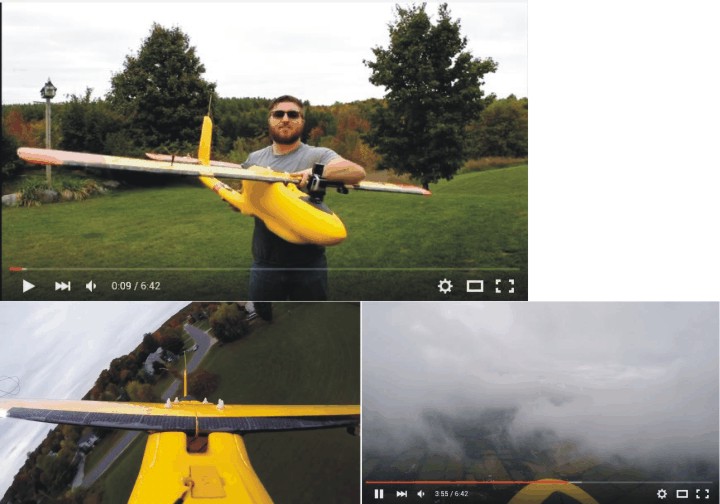

Finwing Sabre Video Collection:





 Reviewers flown over 4.5kg(10 Pound) cruising at about 6-8A!



Gallery: Owner's Sabre
