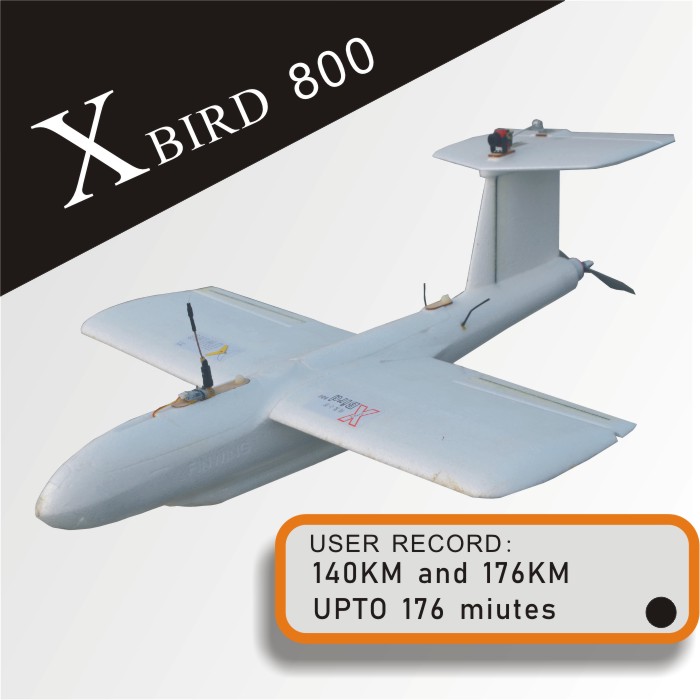

FPV Aircraft XBIRD 800

Brand: XUWING

Material: Durable Molded  EPP

WingSpan: 800MM

Length:760MM

Penguin White Kits weight: 240g

Panda Gray kits weight: 275g

AUW Recommend: 700g-900g

AUW Max. 900g

Flight Record For your reference:

XBIRD Tail Pusher: 21700 4S1P 92minutes 80KM

XBIRD Tail Pusher 18650 4S29 105 Minutes 102KM

XBIRD Tail Pusher 21700 6S1P 162 Minutes 140KM

Single Pusher PNP Electronic combo including following parts :

Reminder: PNP or Electronice combo only including these parts instead of pre-glued and installed, User have to glue the kits and install electronic parts them self

Motor: 1PCS  Sunnysky Customized 2207 CW  KV1300 (38g)

ESC: 1PCS Hobbywing BHLELI 30A (8g)

Servos: 3PCS DM09  (12g) Digital metal gear servo

Propeller: 2PCS APC 7050 CCW



Battery Recommendations( not included by Kits and PNP power combo)

For Single pusher:

21700 4S1P, 18650 3S2P flight time tested upto 90 minutes, 80KM

21700 6S1P 18650 4S2P flight time upto 100 mintes, 100km

Lipo 4S 2200mah-4500mah
