Dead band: 4μs default

Working frequence: （Analogue servo：1520μs/50hz ）

Operating Voltage:  DC4.8~6.0V

Operating Speed (5.0V): 0.14sec/60 degrees at no load
Operating Speed (6.0V): 0.12sec/60 degrees at no load

Stall Torque (5.0V): 4.3kg.cm (59.73 oz/in)

Stall Torque (6.0V): 5.0kg.cm (69.45 oz/in)

Potentiometer Drive: Direct Drive

Dimensions: 23.8*11.7*21.5mm/0.93X0.46X0.84in

Weight: 13.8g (0.49oz)

Connector Wire Length: JR 300 mm (11.7in)

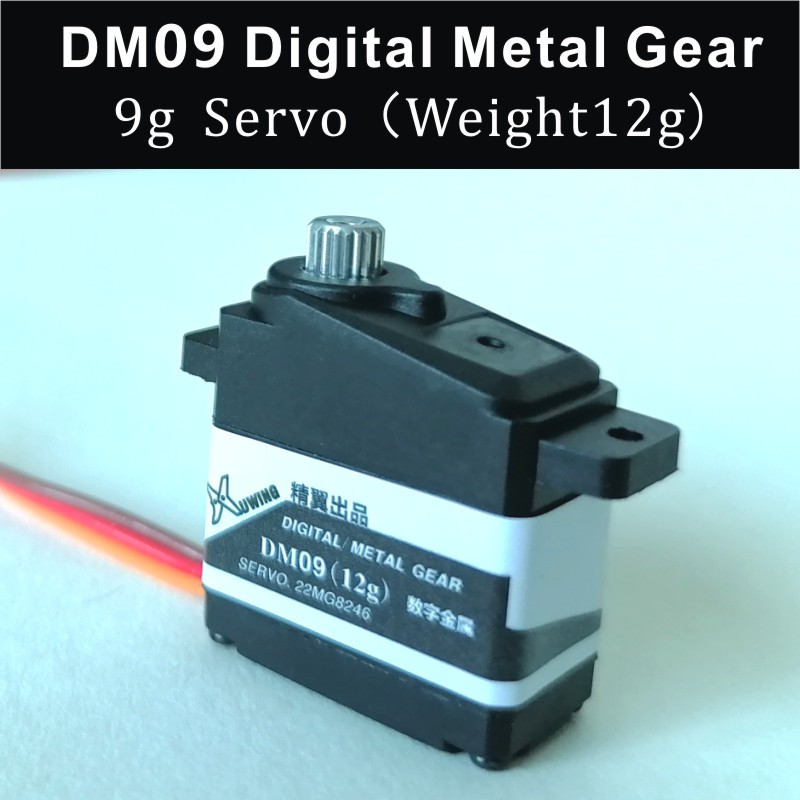

The Servo size is similar to common 9g plastic servo
