XUWING VTBIRD1.6 VTOL UAV Kits(Don't forget to choose Frame Type)

  • NO.:VTB-kit
  • Quantity: 3
  • Brand:VTBIRD
  • Market price:$259.90
    Price For You:$259.90
  • Frame type:
  • QTY: Unit(s)
  • Total:
Payment Option:

View History

Description

Attribute

Order note

Comment







 ----------------------------------------------------------------------------------------------------------

VTOL VTBIRD User Manual

Download User Manual Here: Updated on 04.Dec.2021

 Finwinghobby VTBIRD VTOL User Manual for Tilt Rotor and 4+1

------------------------------------------------------------------------------------------------------------

What  Flight contoller ? :

Currently we don't Produce Flight Contoller, don't sell Flight Controller, Don't answer Flgith contoller related Questions

Generally most of  us use Open source flight contoller, you cab find FC Vendors' listing here:

Recomemd to look at the Brand: Hex pixhawk,CUAV,  Qiotek, Holy bro pixhawk and more..........

https://ardupilot.org/ardupilot/docs/common-stores.html

But if your flight controller is not Open source please brush aside it !

------------------------------------------------------------------------------------------------------------

What  Firmware ? :

if you are going to use Open Source  Flight controller, you can download Firmware from Here:

What VTOL use is the the same as Plane' firmware:  Arduplane

Set Q_Enable to 1  will came out Q_*****related VTOL parameter, if set to 0 is for airplane alone

https://firmware.ardupilot.org/Plane/

But if your flight controller is not Open source please brush aside it and ask your flight contoller supplier directly

------------------------------------------------------------------------------------------------------------

VTOL Both 4+1 and Tilt Rotor Parameter Download

updating on 1/12 2020 (this is open Source Flight Contoller)

VTBIRD VTOL Parameter and Configurations 20201201

Wanning:

don't fully copy all Paramter , don't input all parameter directly,  this is only for learning and reference

------------------------------------------------------------------------------------------------------------

Import Note about shipping( must read before order)

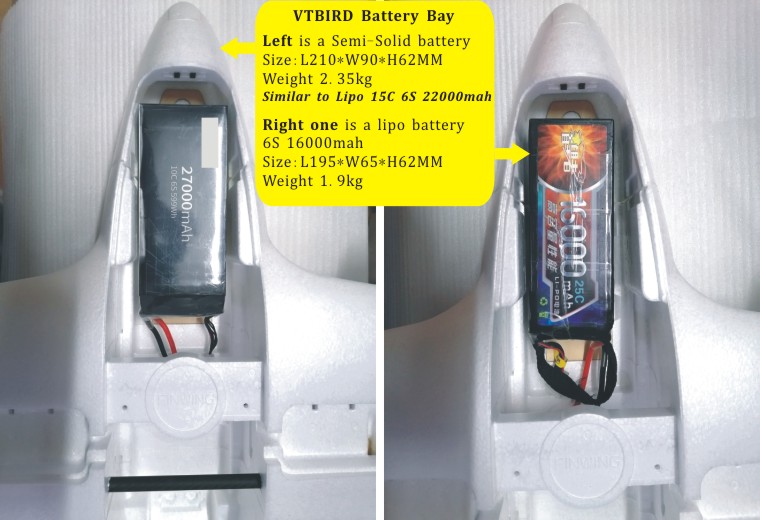

Packing size: 87*27*54CM (Gross weight 5.0-6.0kg) but Volume weight upto 22kg

Don't choose Postal Airmail: this is absolutely unacceptable to ship by Postal Airmail,

Don't choose EMS:  EMS rejected recently the new rules is packing size must be less than 60.0CM

EU please choose UPS Railway Mail if you can see UPS railway mail, if not it means can't ship to you country

Australia please choose UPS Sea shipping if you can see UPS Sea shipping, if not it means can't ship to you country

South Korea please choose Korea direct mail, please leave message to tell us you ID number or company ID for customs clearnace

South East Asia please choose my own forwarder direct mail if you have get in touch with local direct mail service, we will send the package to the forwarder's warehouse in china then they will contact you and buyer pay shipping cost to them directly. if you don't know where to find the loal direct mail service please email to us, we will tell you the contact informations. don't forget to leave message to tell us your forwarder's china warehouse in chinese

USA Buyers please choose Sea shipping Common sea shipping cost around 35-45days (even two months)  Fast Sea shipping Top Priority cost around 30 days except Customs extra inspections will cost more days

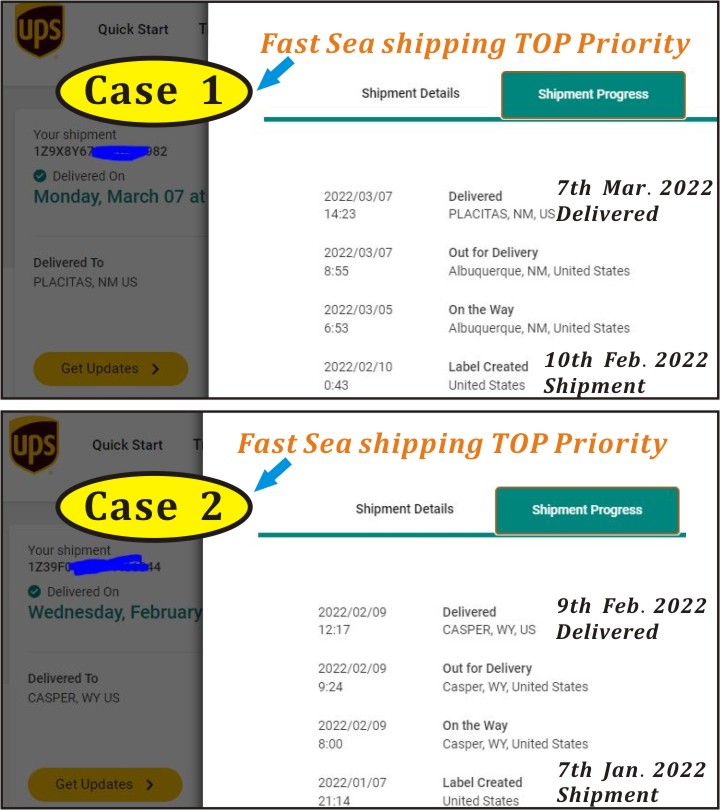

US buyers if want to be faster please choose Fast Sea shipping Top Priority, go to the bottom of this page to see case screen shot





Finwing VTBIRD VTOL Specifications:



WingSpan: 1600MM (63 inch)



Length: 1300MM (51 inch)



WingArea: 40 SqDM



Material: EPO Airframe, Carbon Fiber and lots of 3K Carbon Fiber Spars and  CNC Aluminium Alloy VTOL Parts

Kit weight: 1.05kg (including VTOL 3K Arm but not including VTOL CNC parts)

Flight time: 1-2 hours

Flight range: 90-120KM (testing proved)



VTOL Frame Tilt Rotor AUW: 4.5kg-6.0kg (Max. 6.0kg)
VTOL Frame  4+1 AUW: 4.5kg-5.5kg (Max. 5.5kg)
Payload: 0.4kg-0.8kg
Why TiltRotor Max, upto 6.0kg, 4+1 is 5.5kg ? it's nothing to do with Airplane but becuase of the Propeller,  Tilt Rotor can use 14" 15" propellers but 4+1 can only use 12" propellers, becuase space limited by the pusher propellers, can't use bigger propellers, except you can find a motor which can support enough thrust by 12" propellers.

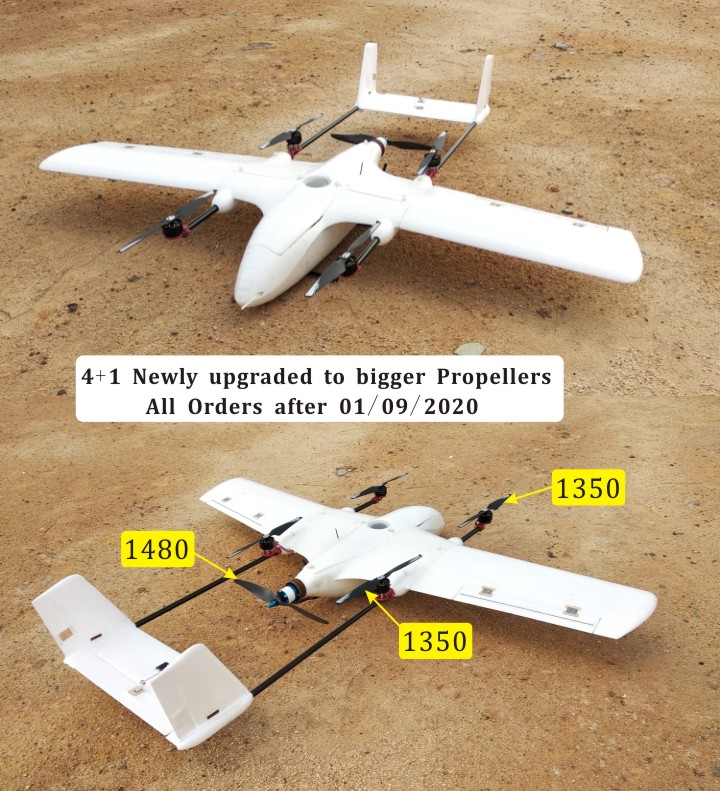

( we have figured out new solutions upgraded 4+1 to bigger propeller, VTOL 13" and pusher 14" )

if you ask me which one recommend? 4+1 or Tilt Rotor?
Firstly please refer to my Endurance testing conclusions perhaps you will learn more after reading
#Air frame weight of 4+1 and Tilt Rotor is almost the same after finally building finished,
#Tilt Rotor looks complex because have to add two Tilt gears but actually easy to adjust, we will have video to intrduce how to adjust the Tilt servo angle properly
#Tilt Rotor can use bigger props Max. flight weight should be a little more than 4+1
Finally depends on what you want and what's for target?  if you are want to a VTOL platform to practice, testing flight controller, fun to fly and VTOL beginner is indeed good to choose 4+1. but if you want to fly heavier with more playload capability then Tilt Rotor would be better.

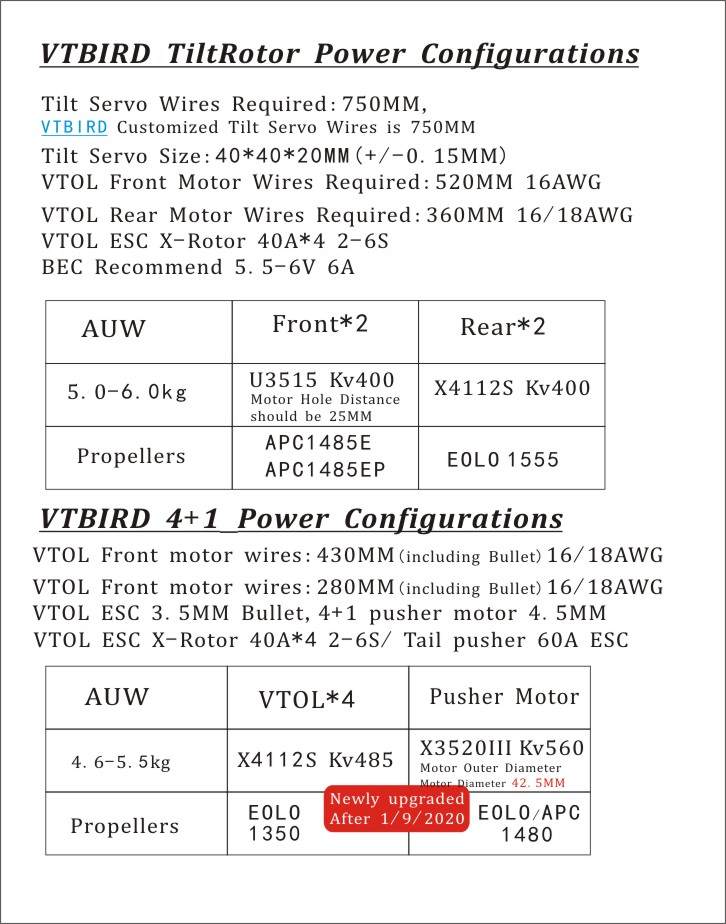

Here is Electronics you may need( not inlcuded by kits)
Aileron and Elevator servo:
ESC for VTOL 4 Motors:
4PCS ESC 40A 2-6S Customized 300mm 16AWG Power wires
BEC: 5-6V 6A
Pusher ESC: 60A (OPTO)

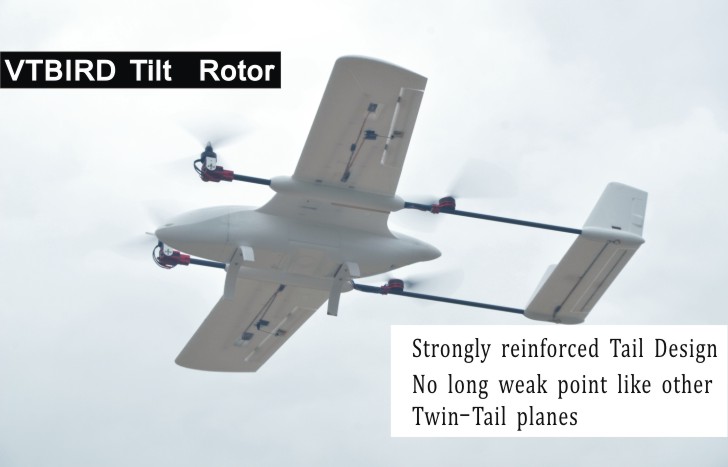

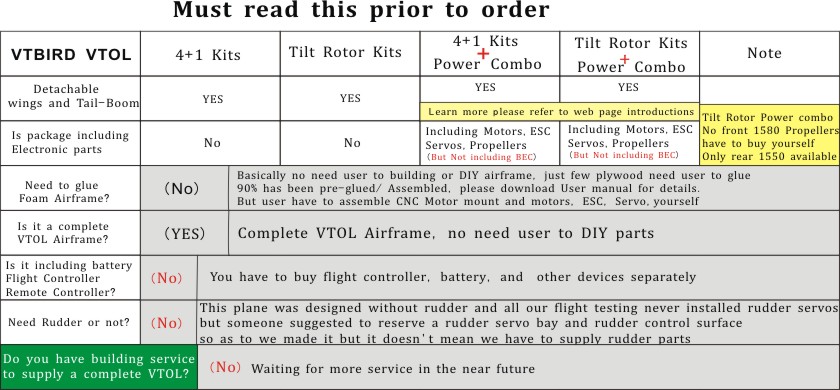

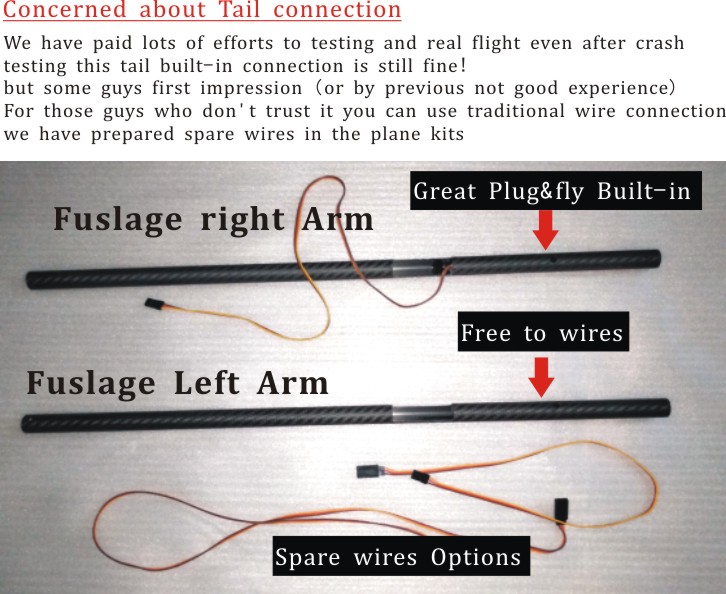

What is VTBIRD VTOL Frame Tilt Rotor kits including?
*Plane Airframe Kits

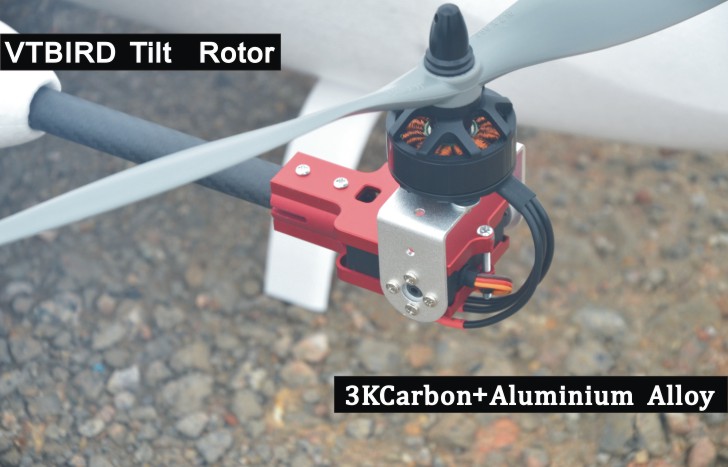

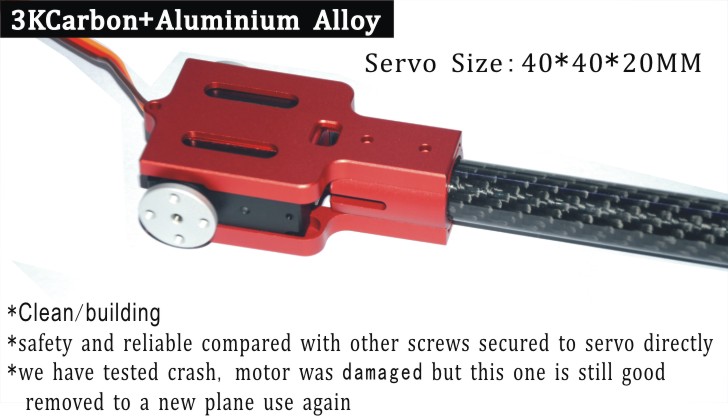

*Tilt Rotor CNC parts and 3K Arms.
*No need user to DIY building, just in stalling Electronics
 NO Electronic parts
 Landing gear show by the photos not included

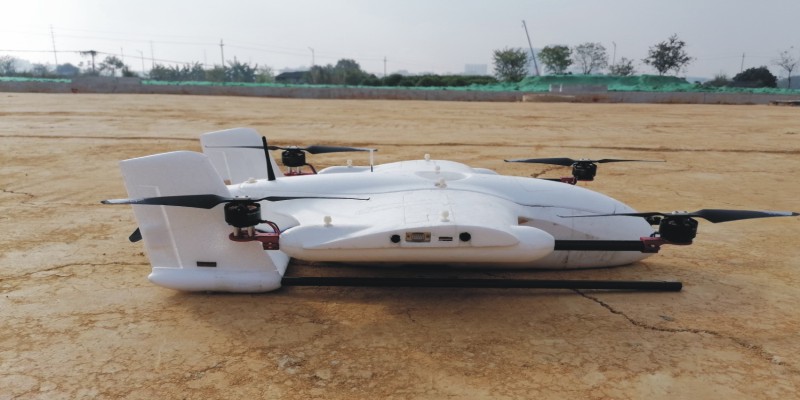

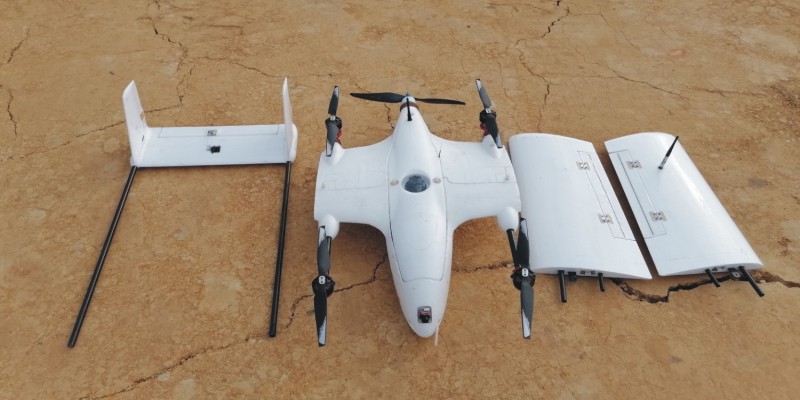

What is VTBIRD VTOL Frame 4+1 kits including?
*Plane Airframe Kits

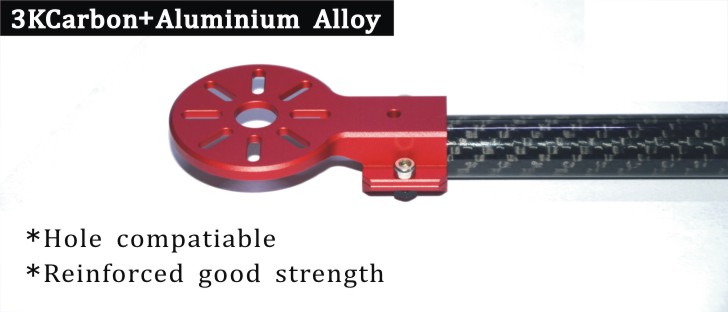

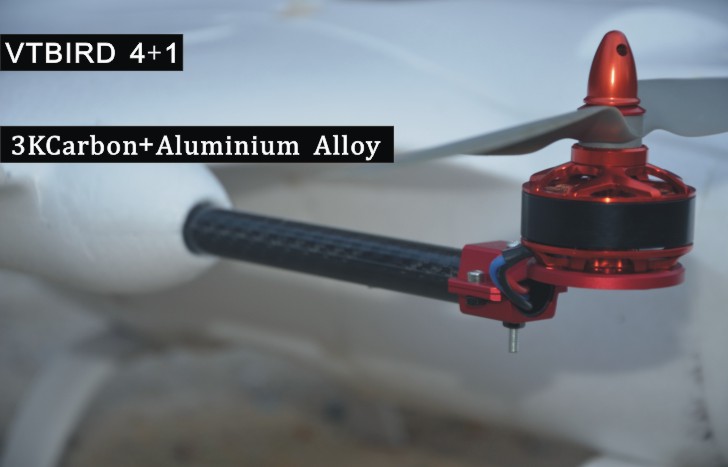

*4+1 CNC parts and 3K Arms.
*No need user to DIY building, just in stalling Electronics
 NO Electronic parts
 Landing gear show by the photos not included

--------------------------------------------------------------------------------------------------------

Landing gear show by the photos not included it's 3D Print landing gear,  you can download the 3D print file here to print it your self or buy it separately.  Reminder: setting "Filling rate" at 20%.

Download 3D print file Here

3D Print introductions(read me before Print)

------------------------------------------------------------------------------------------------

Professional VTOL UAV Aircraft for:



*Mapping



*Surveying



*Rescue

*Forest,River and Boarder Partrol

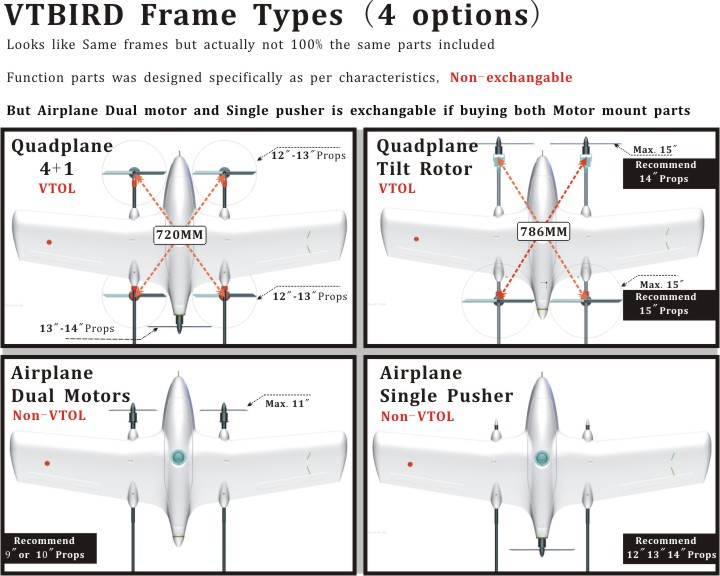

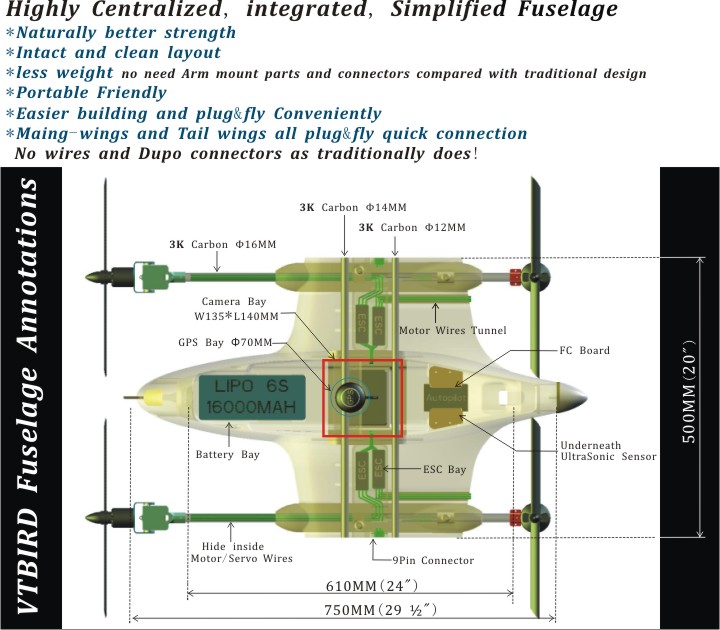

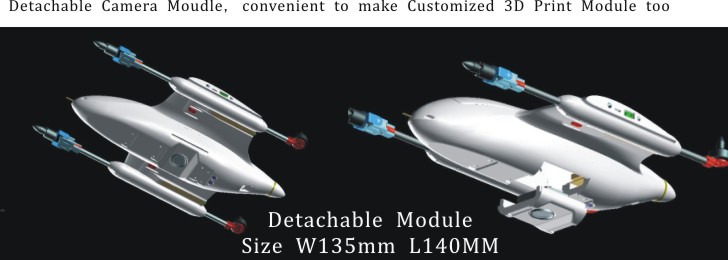

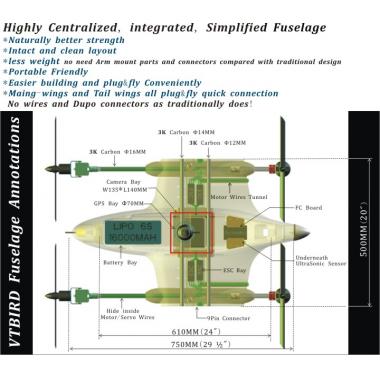

4 in one Design



1. Traditional Dual Motor Tractor plane



2. Traditional Single pusher plane



3. VTOL Frame Type 4+1



4. VTOL Frame type Tilt rotor(Desiger Recommended)

VTBIRD is a 4 in 1  Versatile vehicle both for Fixed wing and VTOL Quad-plane. It was designed for  FPV . Professional VTOL UAV Aircraft for Air Mapping, Surveying, Rescue and  Air Partrol. the best portable and simplified Design to meet both traditional planes and Quad-planes, Possibility of lowest cost investment and less weight added to the plane compared with existing other vehicles if you want to Own a VTOL.

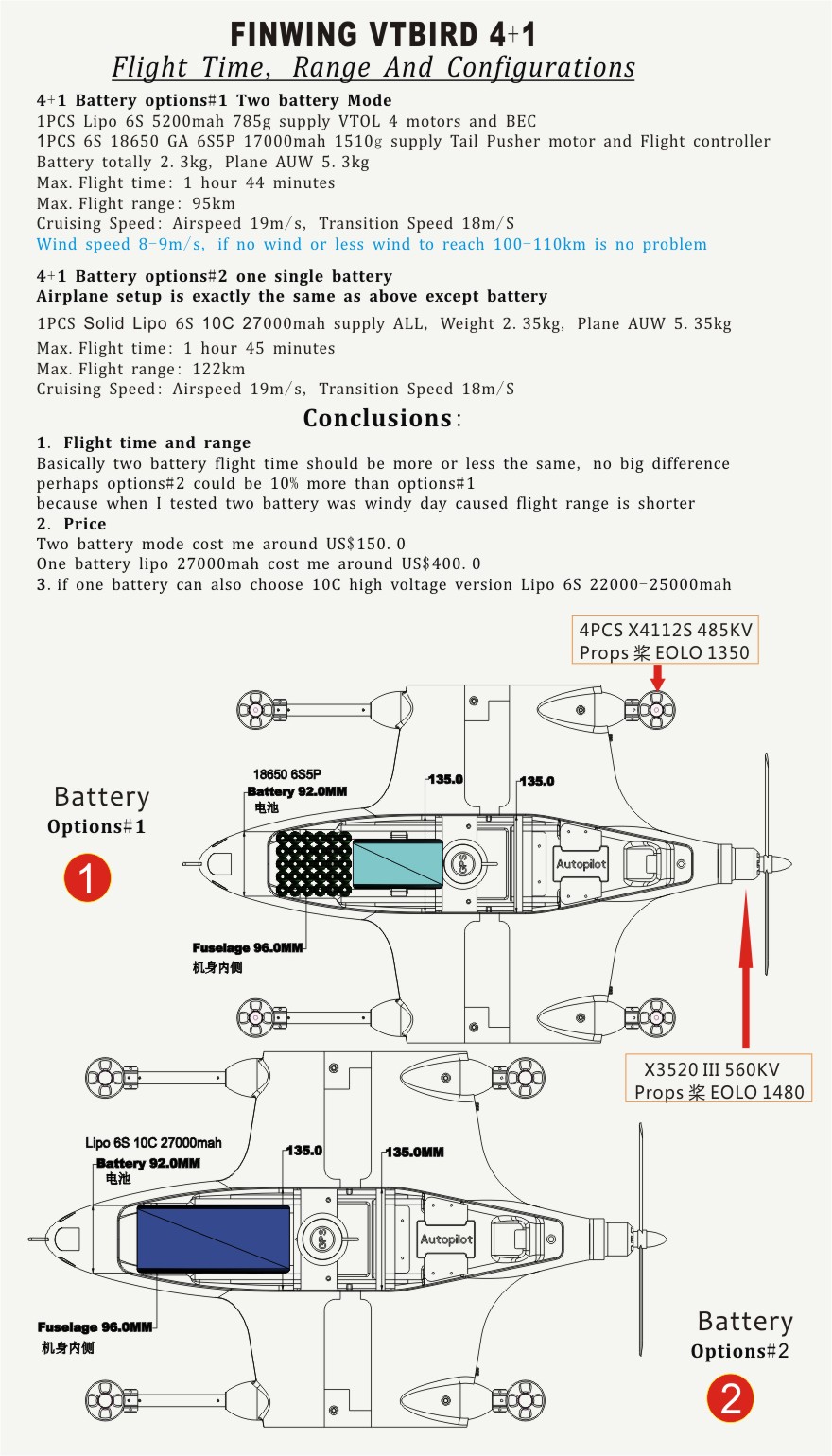

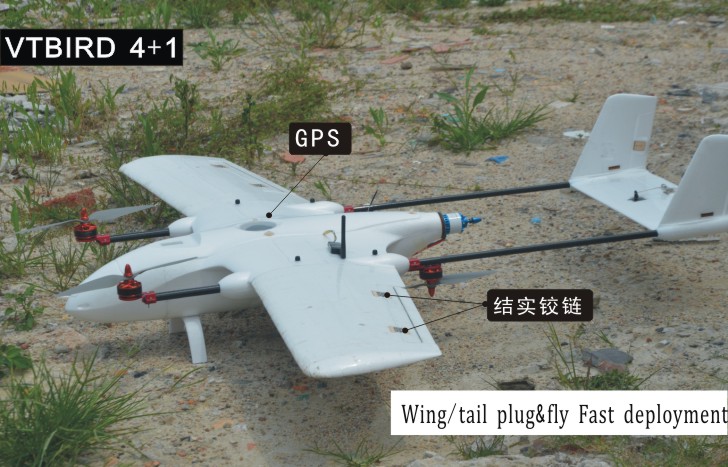

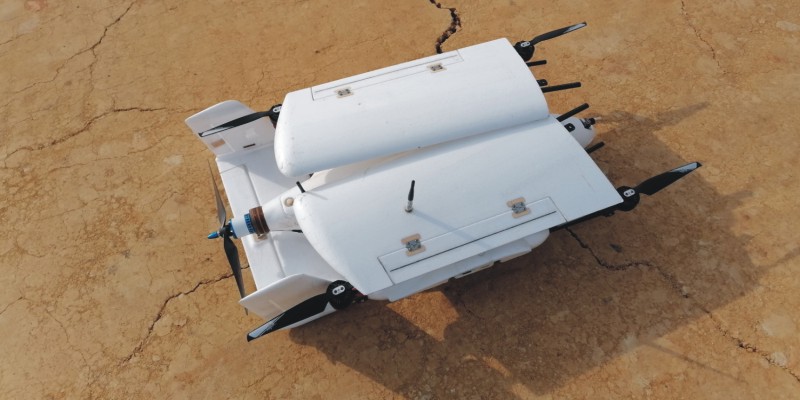

VTBIRD VTOL 4+1

95KM 1 Hour 44 Minutes Endurance Testing

Full Video 1 (Two battery mode):


122kM 1 Hour 45 Minutes Endurance Testing
Full Video 2 (One single  battery mode):

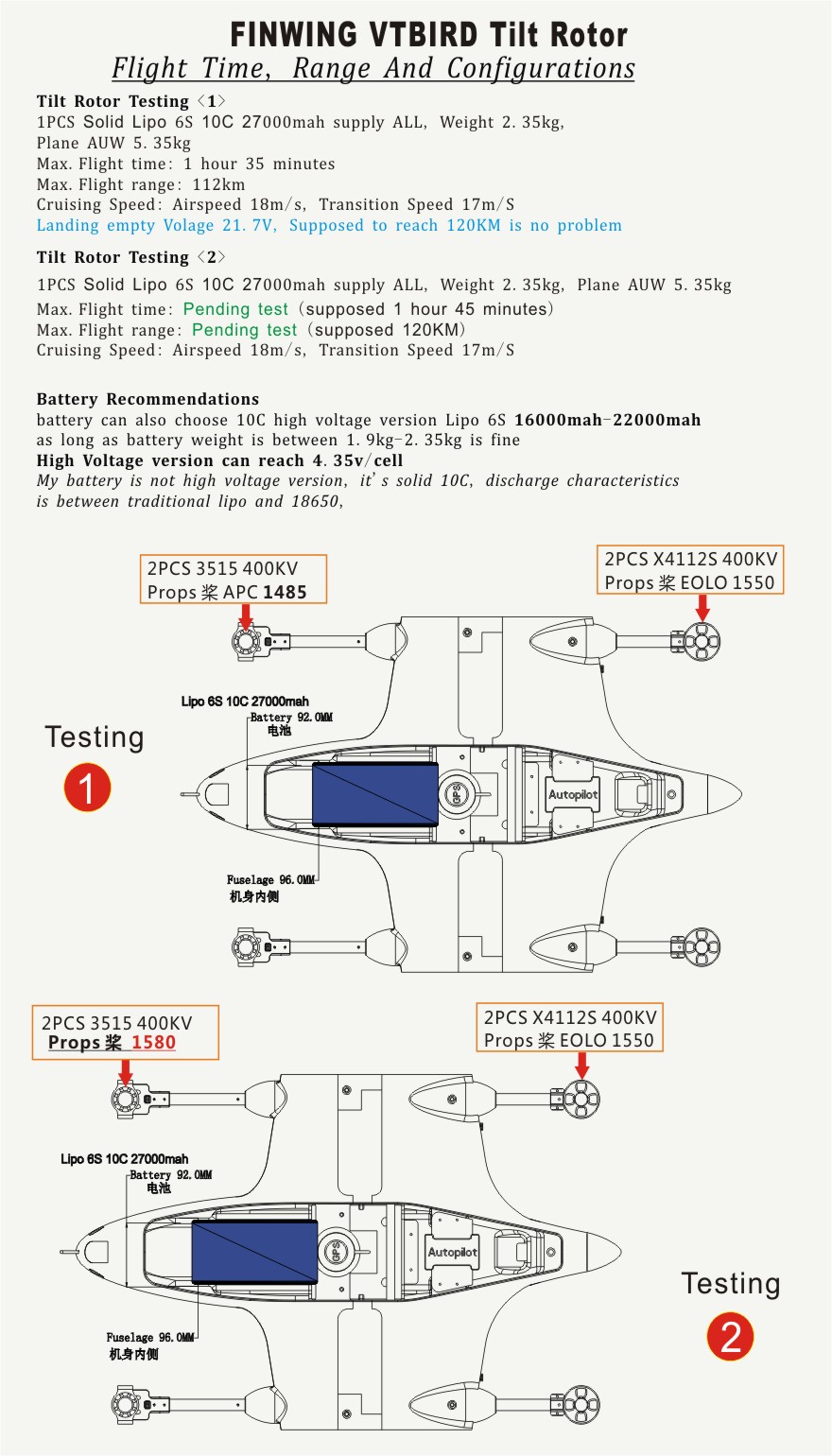

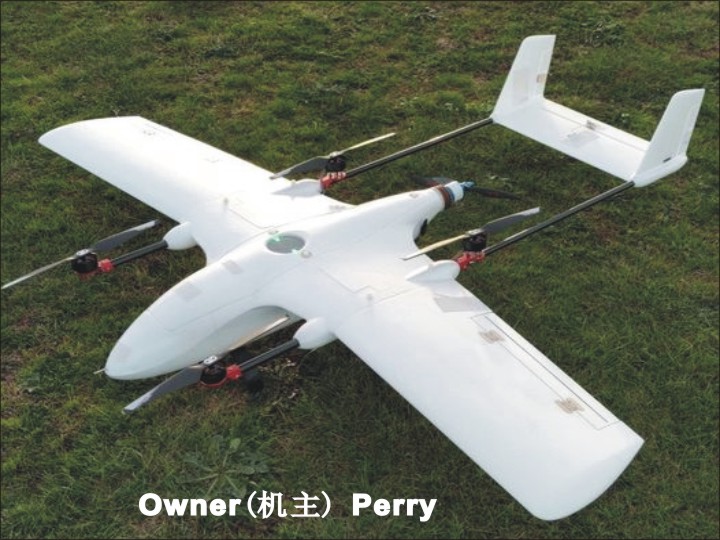

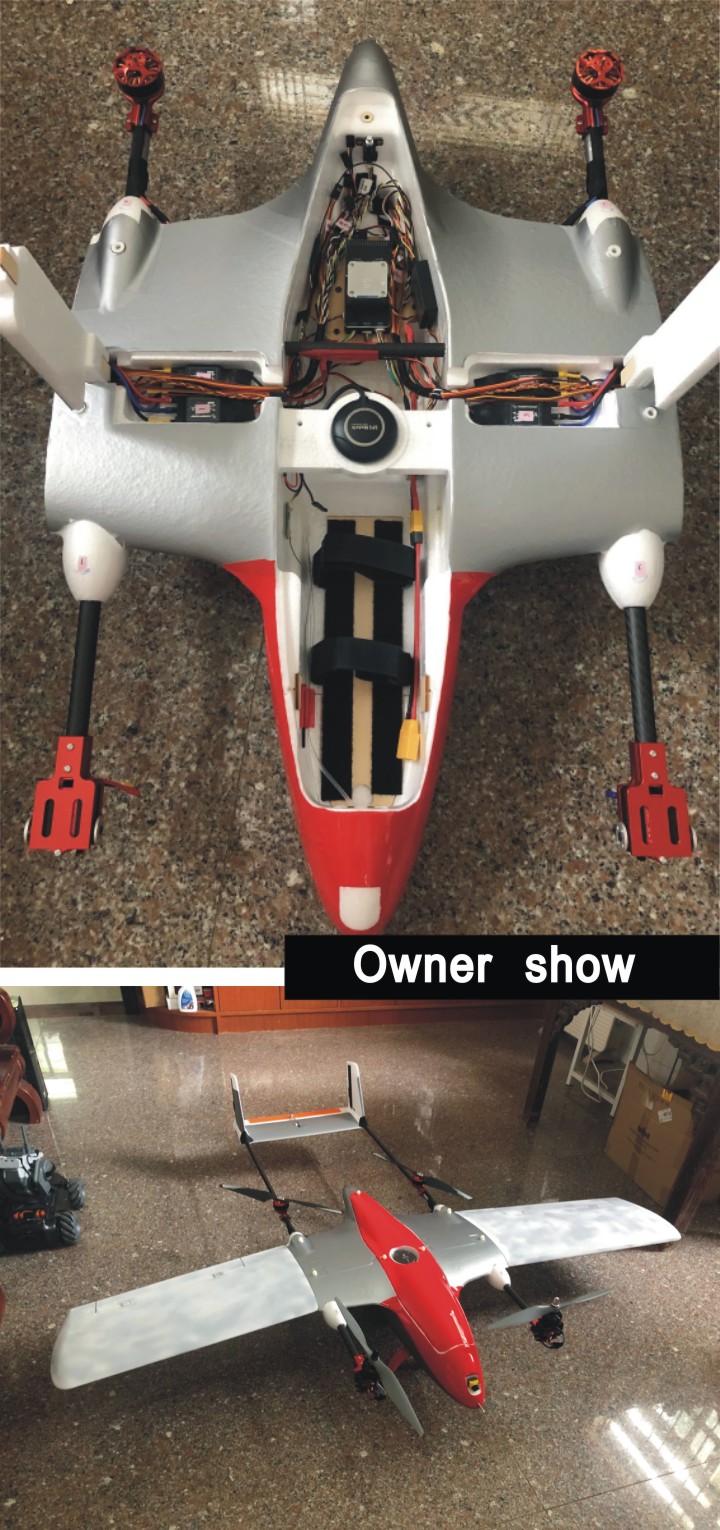

VTBIRD VTOL Tilt Rotor
VTOL Tilt Rotor 112km Range The first time Endurance testing

More Video:



VTBIRD VTOL  Endurance testing and Configurations








Note:
if Tilt Rotor want to fly upto 6.0kg, it's better use Propeller Front 1580 , Rear 1655



Reminder: This is only configurations for your reference,
kits not including any Motor, ESC, Servo, Battery

What VTOL Motors, Propeller?  please contiuning to read the following introductions


















Fast Sea shipping Top Priority TO USA cost around 30 days except Customs extra inspections will cost more days
