Finwinghobby VTBIRD VTOL User Manual for Tilt Rotor and 4+1
------------------------------------------------------------------------------------------------------------
What Flight contoller ? :
Currently we don't Produce Flight Contoller, don't sell Flight Controller, Don't answer Flgith contoller related Questions
Generally most of us use Open source flight contoller, you cab find FC Vendors' listing here:
Recomemd to look at the Brand:Hex pixhawk, Holyrood pixhawk, CUAV, Qiotek, and more..........
https://ardupilot.org/ardupilot/docs/common-stores.html
But if your flight controller is not Open source please brush aside it !
------------------------------------------------------------------------------------------------------------
What Firmware ? :
if you are going to use Open Source Flight controller, you can download Firmware from Here:
What VTOL use is the the same as Plane' firmware: Arduplane
Set Q_Enable to 1 will came out Q_*****related VTOL parameter, if set to 0 is for airplane alone
https://firmware.ardupilot.org/Plane/
But if your flight controller is not Open source please brush aside it and ask your flight contoller supplier directly
------------------------------------------------------------------------------------------------------------
VTOL Both 4+1 and Tilt Rotor Parameter Download
updating on 1/12 2020 (this is open Source Flight Contoller)
VTBIRD VTOL Parameter and Configurations 20201201
Wanning: don't fully copy all Paramter , don't input all parameter directly, this is only for learning and reference
------------------------------------------------------------------------------------------------------------
Import Note about shipping( must read before order)
Packing size: 87*27*54CM (Gross weight 5.0-6.0kg) but Volume weight upto 22kg
Don't choose Postal Airmail: this is absolutely unacceptable to ship by Postal Airmail,
Don't choose EMS: EMS rejected recently the new rules is packing size must be less than 60.0CM
EU please choose UPS Railway Mail if you can see UPS railway mail, if not it means can't ship to you country
Australia please choose UPS Sea shipping if you can see UPS Sea shipping, if not it means can't ship to you country
South Korea please choose Korea direct mail, This is very fast (3-5 days arrived )and cheaper! please leave message to tell us you ID number or company ID for customs clearnace
South East Asia please choose my own forwarder direct mail if you have get in touch with local direct mail service, we will send the package to the forwarder's warehouse in china then they will contact you and buyer pay shipping cost to them directly. if you don't know where to find the loal direct mail service please email to us, we will tell you the contact informations. don't forget to leave message to tell us your forwarder's china warehouse in chinese
USA Buyers please choose Sea shipping Common sea shipping cost around 35-45days (even two months) Fast Sea shipping Top Priority cost around 30 days except Customs extra inspections will cost more days

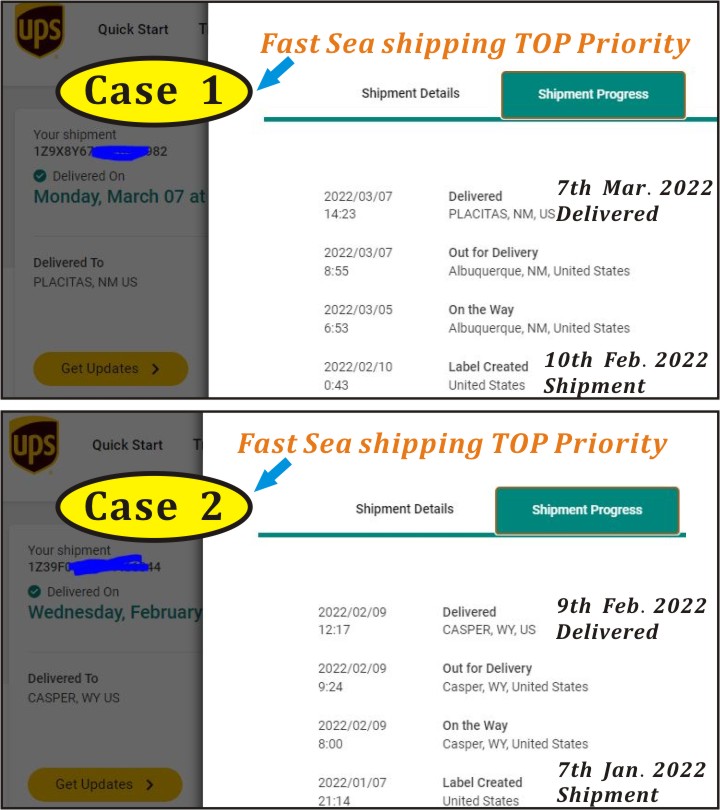

US buyers if want to be faster please choose Fast Sea shipping Top Priority, go to the bottom of this page to see case screen shot
Professional VTOL UAV Aircraft for:
*Mapping
*Surveying
*Rescue
*Forest,River and Boarder Partrol
Finwing VTBIRD VTOL Specifications:
WingSpan: 1600MM (63 inch)
Length: 1300MM (51 inch)
WingArea: 40 SqDM

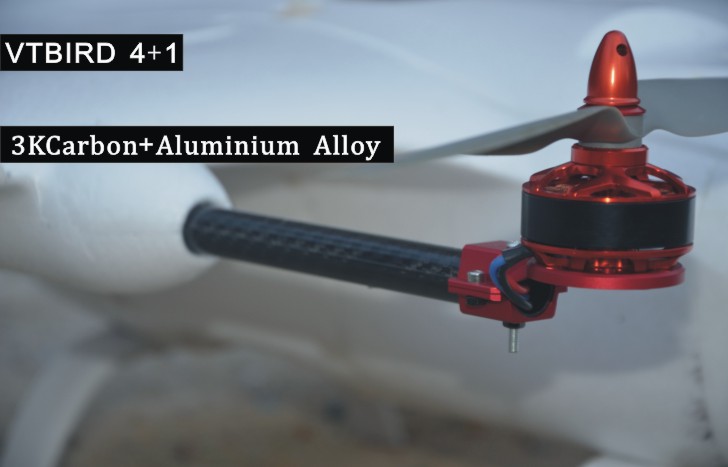

Material: EPO Airframe, Carbon Fiber and lots of 3K Carbon Fiber Spars and CNC Aluminium Alloy VTOL Parts
Kit weight: 1.05kg (including VTOL 3K Arm but not including VTOL CNC parts)
Flight time: 1-2 hours
Flight range: 90-120KM (testing proved)

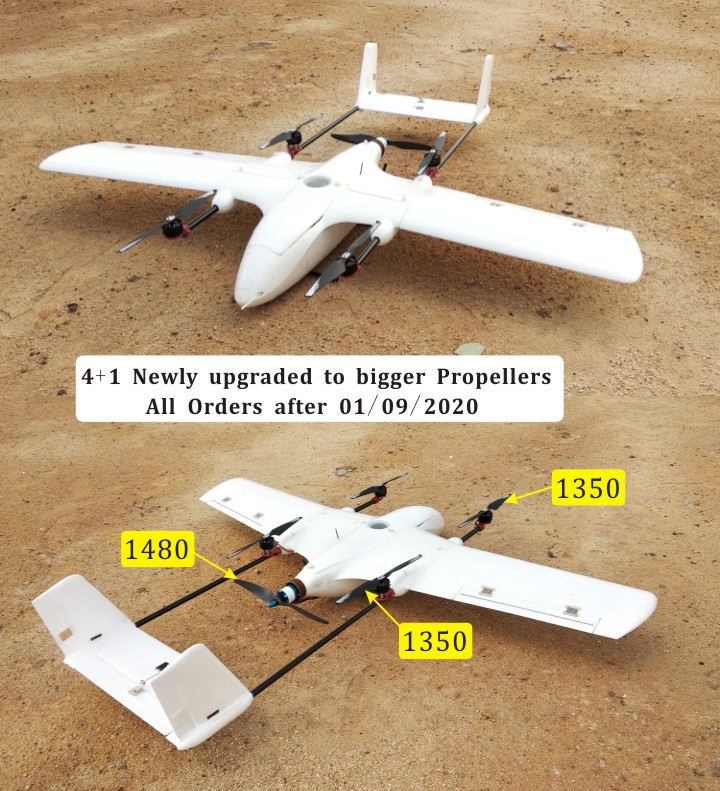

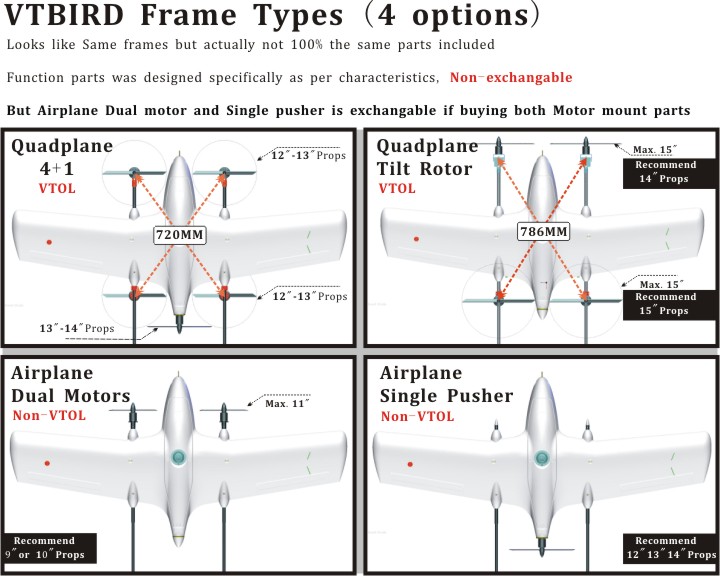

VTOL Frame Tilt Rotor AUW: 4.5kg-6.0kg (Max. 6.0kg)VTOL Frame 4+1 AUW: 4.5kg-5.5kg (Max. 5.5kg)Payload: 0.4kg-0.8kgWhy TiltRotor Max, upto 6.0kg, 4+1 is 5.5kg ? it's nothing to do with Airplane but becuase of the Propeller, Tilt Rotor can use 14" 15" propellers but 4+1 can only use 12" propellers, becuase space limited by the pusher propellers, can't use bigger propellers, except you can find a motor which can support enough thrust by 12" propellers.( we have figured out new solutions upgraded 4+1 to bigger propeller, VTOL 13" and pusher 14" )if you ask me which one recommend? 4+1 or Tilt Rotor?Firstly please refer to my Endurance testing conclusions perhaps you will learn more after reading#Air frame weight of 4+1 and Tilt Rotor is almost the same after finally building finished,#Tilt Rotor looks complex becuase have to add two Tilt gears but actually easy to adjust, we will have video to introduce how to adjust the Tilt servo angle properly#Tilt Rotor can use bigger props Max. flight weight should be a little more than 4+1Finally depends on what you want and what's for target? if you are want to a VTOL platform to practice, testing flight controller, fun to fly and VTOL beginner is indeed good to choose 4+1. but if you want to fly heavier with more playload capability then Tilt Rotor would be better.Aileron and Elevator servo:ESC for VTOL 4 Motors:4PCS 40A 2-6S, Customized 300mm 16AWG Power wiresBEC: 5-6V 6APusher ESC: 60A (OPTO)What is VTBIRD VTOL Frame 4+1 kits including?*Plane Airframe Kits*4+1 CNC parts and 3K Arms.*No need user to DIY building, just in stalling ElectronicsNO Electronic partsLanding gear show by the photos not includedWhat is VTBIRD VTOL 4+1kits+ Power combo <instead of complete PNP!>Power combo including folllowing electronic devices:1> 4PCS Brushless Motor X4112S KV 4852> 1PCS Brushless MotorSunnysky X3520 III KV 5603> 4PCS ESC 40A 2-6S, Customized 300mm 16AWG Power wires5> 1PCS 60A ESC (no BEC)6> Eolo 1350 Propeller 4PCS for VTOL7> Eolo 14*8 Propeller 1PCS for pusherWhat else you will need for a complete power system ?#2. Battery 6S 16000-22000mah or two battery solutions 1PCS 6S 5200-6000mah for VTOL, Another one 18650 6S4P or 21700 6S3P for Fixed-wing#3. flgiht controller, reomote controller and other device you will need to learn and buying youself--------------------------------------------------------------------------------------------------------
Landing gear show by the photos not included it's 3D Print landing gear, you can download the 3D print file here to print it your self or buy it separately. Reminder: setting "Filling rate" at 20%.
3D Print introductions(read me before Print)
------------------------------------------------------------------------------------------------

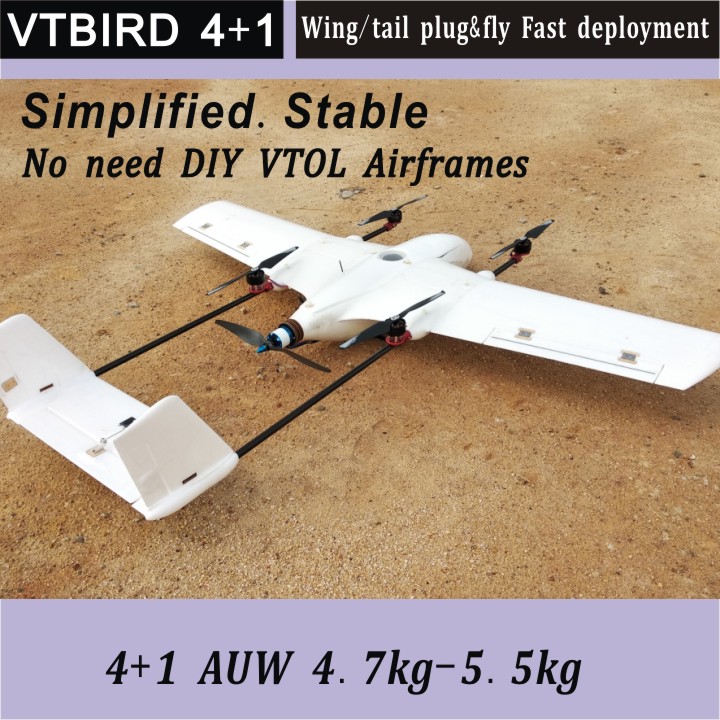

VTBIRD is a 4 in 1 Versatile vehicle both for Fixed wing and VTOL Quad-plane. It was designed for FPV . Professional VTOL UAV Aircraft for Air Mapping, Surveying, Rescue and Air Partrol. the best portable and simplified Design to meet both traditional planes and Quad-planes, Possibility of lowest cost investment and less weight added to the plane compared with existing other vehicles if you want to Own a VTOL.
VTBIRD VTOL 4+1

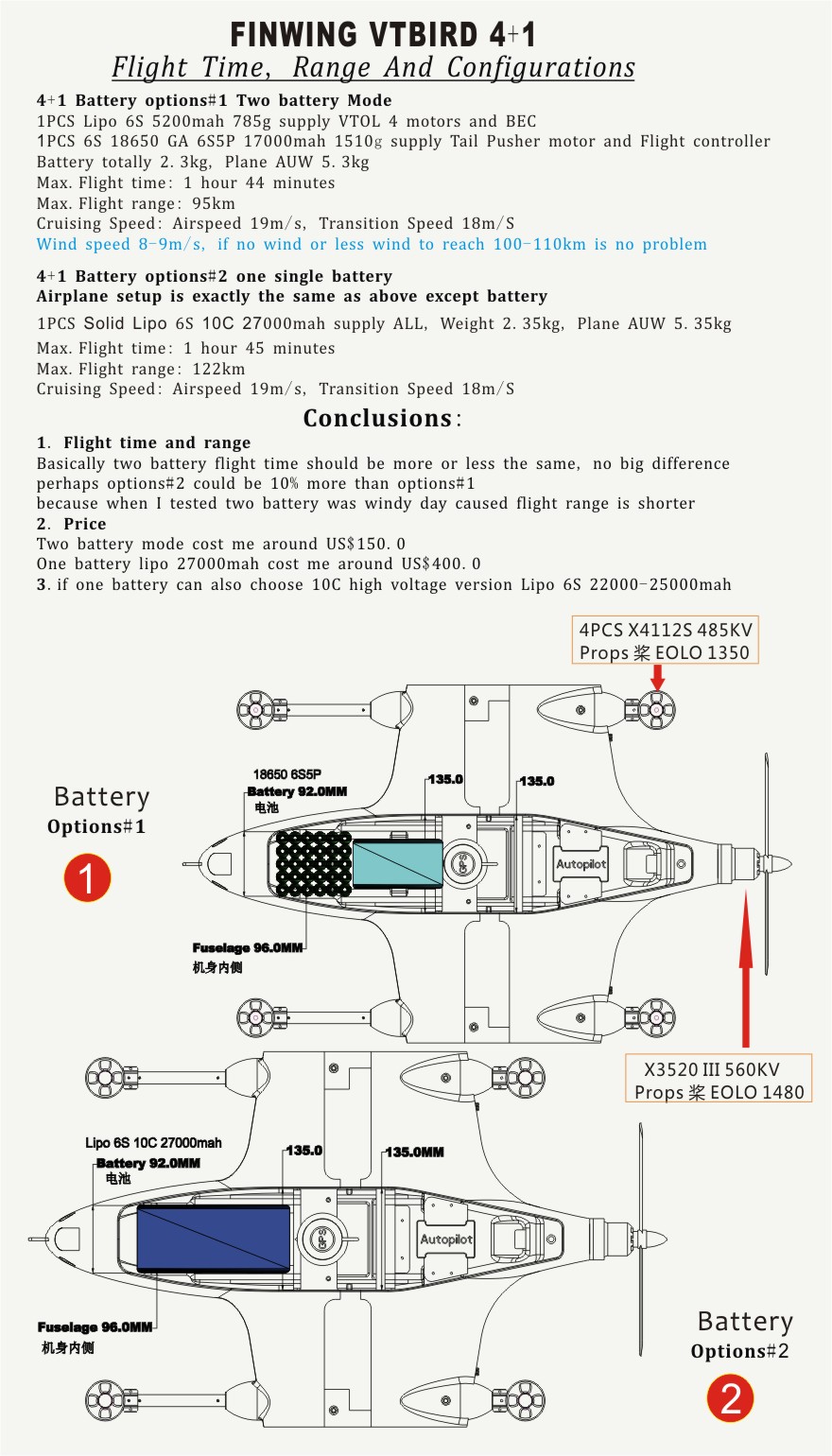

95KM 1 Hour 44 Minutes Endurance Testing
Full Video 1 (Two battery mode):
122kM 1 Hour 45 Minutes Endurance TestingFull Video 2 (One single battery mode):VTBIRD VTOL Tilt RotorVTOL Tilt Rotor 112km Range The first time Endurance testingMore Video:
