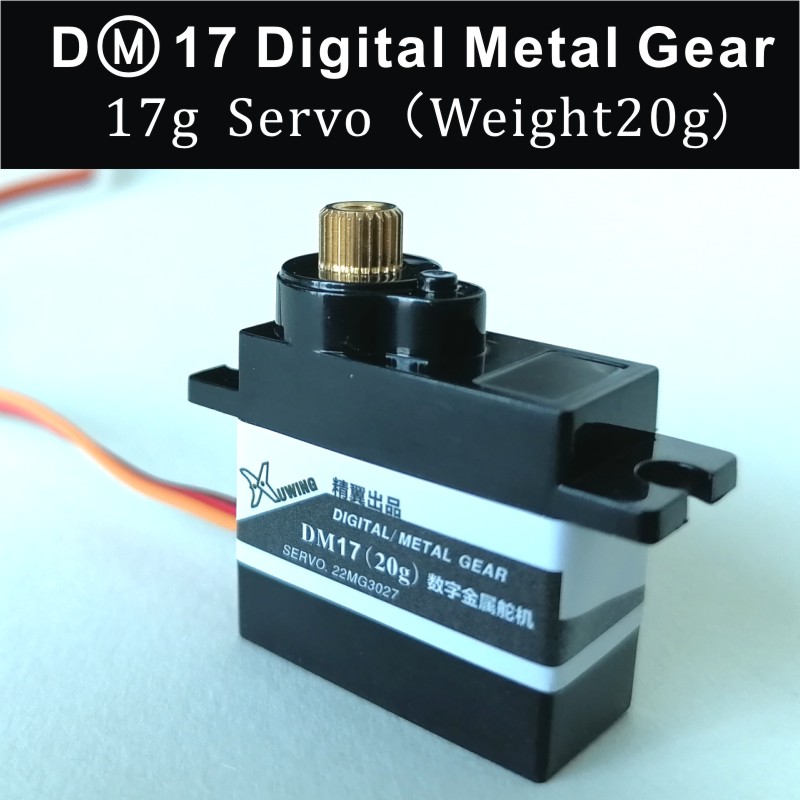

17G/23G Digital Metal Gear Servo

  • NO.:FAM 017
  • Quantity: 20
  • Brand:Finwinghobby
  • Market price:$8.98
    Price For You:$8.98
  • QTY: Unit(s)
  • Total:
Payment Option:

View History



Order note




Amplifier type: Digital

Size: 27*12.5*29.8

weight:  18.9g (without wire)

Voltage Range: 4.8V-6.0V

6.0V  0.14sec/60°

7.4V  0.12sec/60°

Stall torque 3.0kgf.cm / 3.5kgf.cm

Stall current 1.0A/1.3A

Idle current(stopped) 30mA

Running current (no load) 120mA/150mA

Travel  90° ( Pulse Width 1000-2000)

Max.Travel 125° (Pulse Width 800-2200)

Pulse Width Range 800-2200

Wire length: Customized 350MM

Reduction ratio 309:1



its Size is similar to a 17g Plastic servo, someone also name it 17g metal gear servo, but the Servo weight is only 18.8g(excluding extension wire). its weight is similar to a 9g metal gear servo, Generally a 9g metal gear servo is also upto15.5g.  it's a good choice to use this servo instead of a 9g metal gear servo if 4.0g is not a big deal to you plane!


including customized 35CM longer extension is around 23g, Generally servo wire only about 10-18CM, with this customized longer wire you don't need to use extension wire for most of the planes
