XUWING XBIRD800 USER MANUAL DOWNLOAD

--------------------------------------------------------------------------------------------

Must Read before order:

1. please do to choose what color you like and what power configurations you like! don't forget

2. Free shipping must choose Postal Airmail, choose others is invalid,

3. if you want to be faser please at the top " shipping options" choose EMS and have to add extra US35.0,

    if what shipping options choose is Free shipping by Postal Airmail but checkout choose EMS is invalid, we will still use Postal Airmail

4. under the situations of Covid-19, Global logistics became worse and wose, please do to be patience to wait if some package stay for long time no updating.

 at last but not least Good news is XBIRD800 can shipping to USA directly too by Both Postal Airmail and EMS.

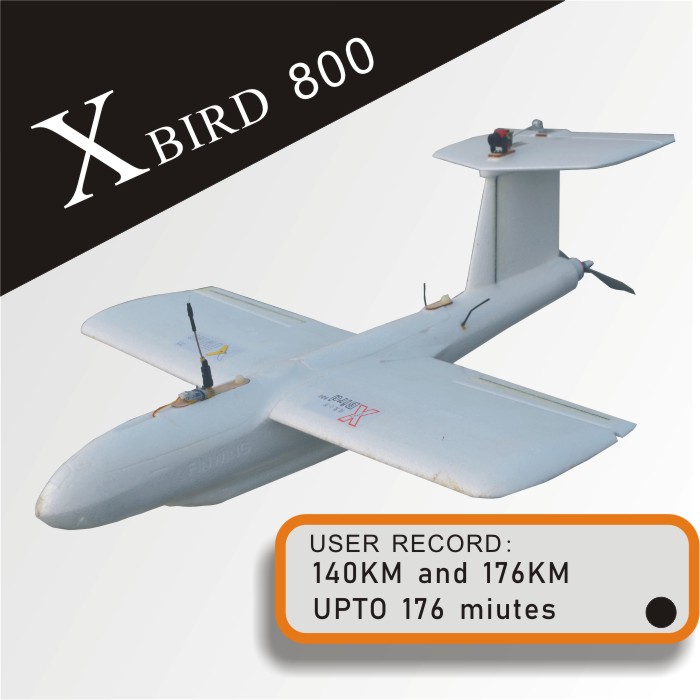

FPV Aircraft XBIRD 800

Brand: XUWING

Material: Durable Molded  EPP

WingSpan: 800MM

Length:760MM

Penguin White Kits weight: 240g

Panda Gray kits weight: 275g

AUW Recommend: 700g-900g

AUW Max. 900g

Flight Record For your reference:

XBIRD Tail Pusher: 21700 4S1P 92minutes 80KM

XBIRD Tail Pusher 18650 4S29 105 Minutes 102KM

XBIRD Tail Pusher 21700 6S1P 162 Minutes 140KM

Motors, ESC, Servos and Propeller (kits not included)  for Single Pusher :

Motor: 1PCS 2207 KV1300 (38g)

ESC: Hobbywing BHLELI 30A (8g)

Servos: 3PCS DM09 (12g) Digital metal gear servo

Propeller: APC 7050

Motors, ESC Servos and Propellers (Kits not included) for Dual Tractor

Motors: 1806-2204 KV2000-2100 1PCS CW+1PCCW

ESC: 2PCS 15A-20A

Servos: 3PCS DM09  (12g) Digital metal gear servo

Propeller: 6040 6045 1PCS CW+1PCS CCW



Battery Recommendations( not included by Kits and PNP power combo)

For Single pusher:

21700 4S1P, 18650 3S2P flight time tested upto 90 minutes, 80KM

21700 6S1P 18650 4S2P flight time upto 100 mintes, 100km

Lipo 4S 2200mah-4500mah

For dual tracotr:

21700 4S1P 18650 3S2P

Lipo 3S or 4S 2200mah-4000mah
