9+2 9W2 VTOL/UAV Connector(one male and one female)

  • NO.:9w2
  • Quantity: 224
  • Brand:Finwinghobby
  • Market price:$3.99
    Price For You:$3.99
  • QTY: Unit(s)
  • Total:
Payment Option:

Description

Attribute

Order note

Comment

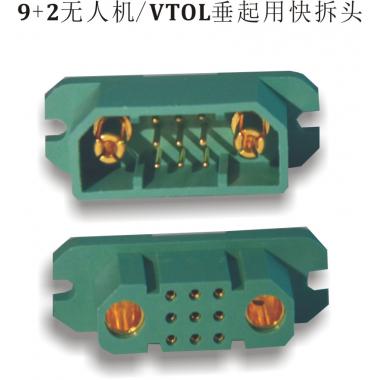

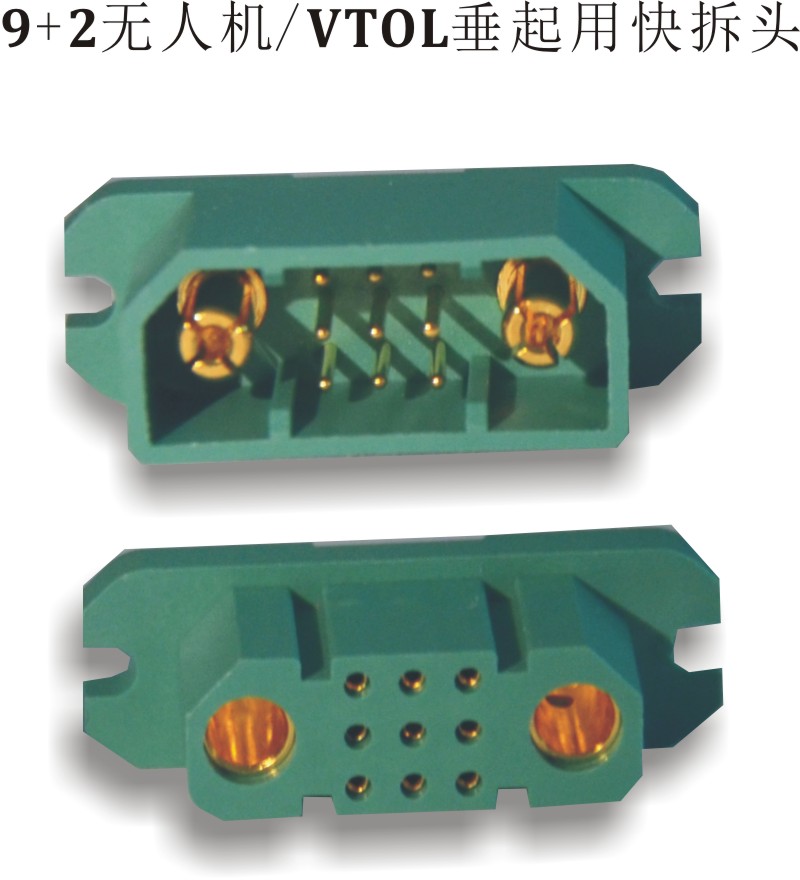

9+2 9w2 connector for UAV Airplane. VTOL planes and drones

Important note:

1. This package including  one male and one female 9+2 Connector (1pair)

one plane need two pair, it means need two males and two females

2. Power connector is similiar to XT60(but not exactly the same), you can reference to XT60 connector if you want to learn what is the Max. current available. Generally 30A contiunous, if shot time someone tested 50A-80A is also no problem for example shot time during take off and landing(VTOL)

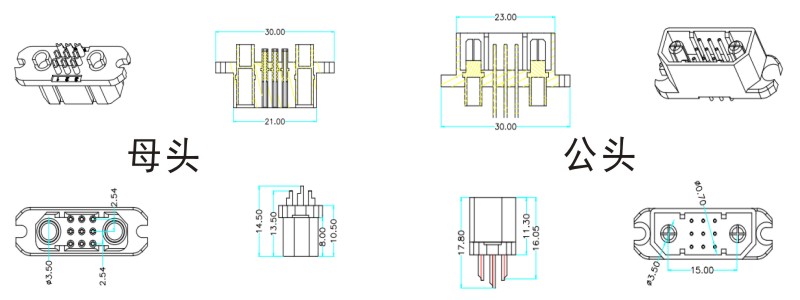

Unit: MM

Width is 10MM
