Features:

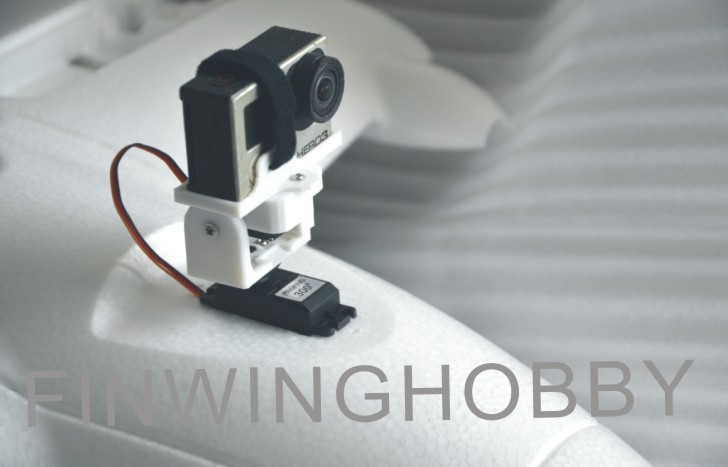

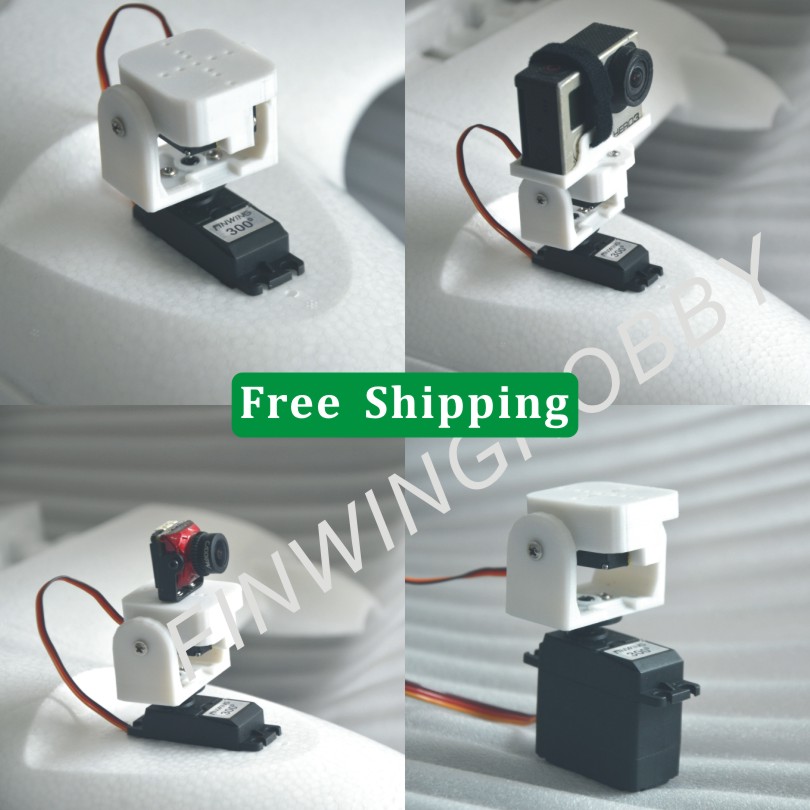

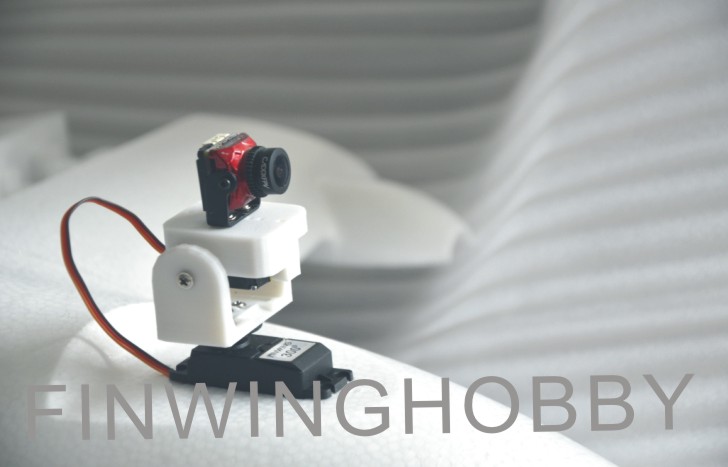

The Whole Pan&tilt is a platform, almost all the FPV camera on the market you can find is available to be mounted to this platform, Mobius, Gopro. ect...

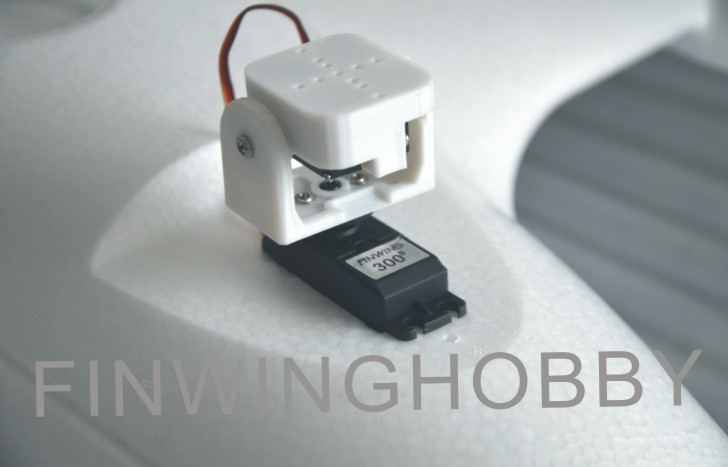

Finwing 300 Degree Versatile Pan&Tilt-Heavy Duty

Pan Servo (included) 55g Professional Heavy Duty  Metal Gear

Stall Torque >8.0kg Max. 13kg/CM (4.8-6.0V)

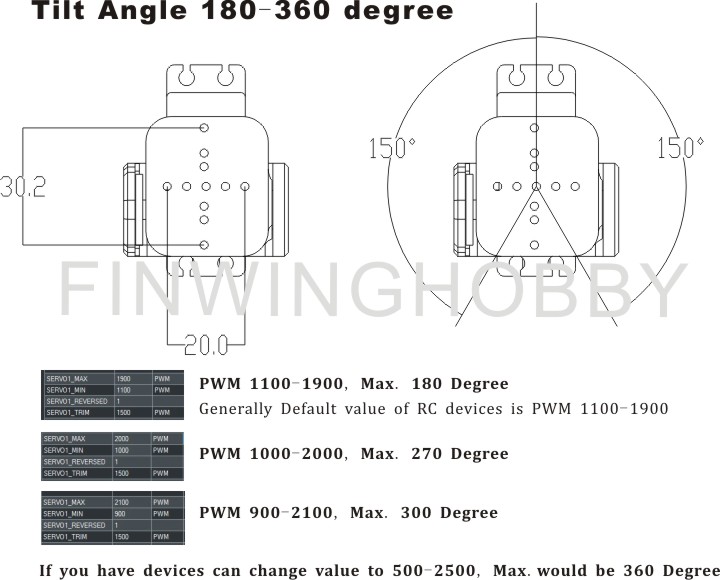

Pan Servo Pulse Width:1000-2000 (Testing Angle >300, Max. 360Degree)

Tilt servo(included)  17g/23g  Digital Metal Gear servo

Testing by RC Transmitter:

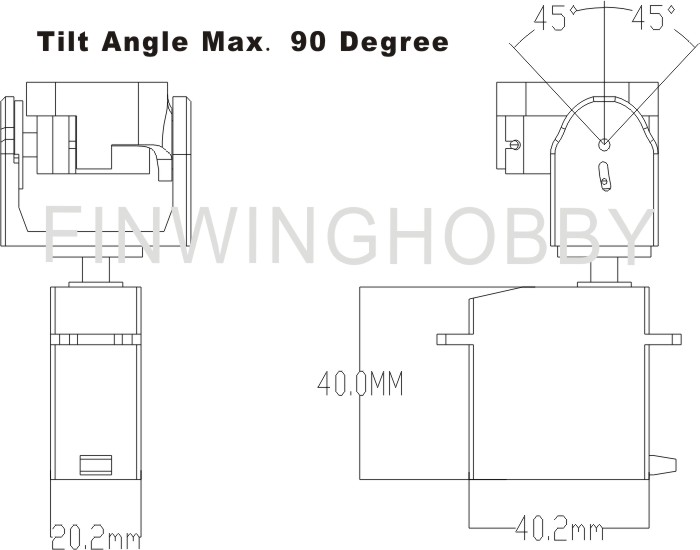

Pan Full 300 degree (+/- 150 degree )  Tilt Full 60 degree

Rotation Angle May variable subject to different pulse width by different control equipments



Attentions: This video and above photos display  is a 390 version not 300 version,Structure design and size is exactly the same for both 390 and 300, the difference is the Pan servo

 Whole weight is 110g
